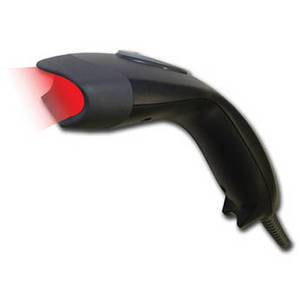

NuScan 2100 Slim Long Range Handheld CCD Barcode Scanner
From Adesso | Model #: ADNS2100U

See more in Electronics




NuScan 2100 Slim Long Range Handheld CCD Barcode Scanner
Product Description

The ergonomic ultra-slim NuScan 2100 Slim Long Range Handheld CCD Barcode Scanner from Adesso is designed to withstand heavy use. The barcode scanner can be used to input data for greater accuracy than manual input on a keyboard. Simply point the scanner at the barcode, press the trigger button to send the code to the active application as if you used a keyboard.

The scanner can read most bar codes, including:
UPC/EAN/JAN, UPC/EAN with supplementary, JAN 8 & JAN 13, ISBN/ISSN, Japanese Bookland EAN, Code 39, Code 39 with full ASCII, Codabar (NM7),Code 128, Code 128 with full ASCII, Code 93, Interleaved 2 of 5 (ITF), Addendum 2 of 5, IATA Code,MSI/Plessy, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, Discrete 2 of 5, Matrix 2 of 5, Code 11, UPC/EAN RSS, RSS variants

Light Source 617 nm visible red LED
Optical System 2500-pixel CCD
Depth-of-Field 0 - 6.0" (UPC/EAN 100%, PCS 90%)
Scan Rate 125 scans / second
Scan Area Minimum bar width: 0.125 mm
Scan Modes Trigger-Activated, Auto Scan, Alternate, Repeat
Bar-Code Types UPC Version A & E
EAN-8, EAN-13
JAN-8, JAN-13
ISBN, ISSN
Japanese Bookland
Code 39 (with full ASCII)
Codabar (NM7)
Code 128/EAN 128
Code 93
Interleaved 2 of 5 (ITF)
Addendum 2 of 5
IATA Code
MSI/Plessy
China Postal Code
Code 32(Italian Pharmacode)
Industrial 2 of 5
Contrast Print Contrast - 30%
Light Intensity Max. 20,000 Lux (fluorescence)
Interface USB 1.1
Input Voltage 5 VDC ±5%
Average Operating Current 100 mA
System Requirements OS: Windows 7, Vista, XP, 2000
Processor: Pentium II 400, Celeron 400, AMD Athlon (500Mhz or higher recommended)
Memory: 64 MB RAM, 110 MB hard drive space
Video: 16-bit color display adapter
Sound: Windows or MAC OSX compatible sound card and speakers (full duplex sound card recommended)
Temperature / Humidity Operating Temperature: 32 to 122°F (0 to 50°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Humidity: 20 - 85%
Indicators Blue LED
Cable Length 6.5' (1.98 m)
Dimensions 6.0 x 2.5 x 4.12" (15.24 x 6.35 x 10.46 cm)
Weight 4.16 oz (117.9 g) w/o cable
