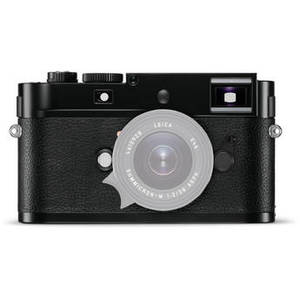

M-D (Typ 262) Digital Rangefinder Camera
Product Description

Embodying Leica's philosophies in the most essential form, the M-D (Typ 262) is a digital rangefinder that heavily emphasizes manual control and room to concentrate solely on the scene at hand. By omitting virtually all automatic features as well as a rear LCD screen, the M-D's simplicity is its core attribute, and affords unencumbered access to the four basic elements of photography: shutter speed, aperture, ISO, and focus. This simplicity is carried over to the operating aspects of the camera, including its manual rangefinder focusing mechanism, clear 0.68x-magnification optical viewfinder, and stills-only recording in the uncompressed DNG raw file format. Beyond handling and design, the M-D is, of course, also characterized by notable imaging performance aided by the full-frame MAX 24MP CMOS sensor and Maestro image processor that afford a top sensitivity of ISO 6400 and up to 3 fps continuous shooting. Designed as a camera for the pure photographer, the M-D maintains Leica's dedication to their heritage in crafting simple yet highly functional tools as well as an admiration for the basic elements of photography itself.
Imaging
Lens Mount Leica M
Camera Format Full-Frame
Pixels 24 Megapixel
Max Resolution 5976 x 3992
Aspect Ratio 3:2
Sensor Type / Size CMOS, 35.8 x 23.9 mm
File Formats Still Images: DNG
Memory Card Type SD
SDHC
SDXC
Focus Control
Focus Type Manual
Viewfinder/Display
Viewfinder Type Optical
Viewfinder Magnification Approx. 0.68x
Display Screen None
Exposure Control
ISO Sensitivity 200-6400
Shutter Type: Mechanical
Speed: 8 - 1/4000 Second
Type: Mechanical
Speed: 0 - 60 Second in Bulb Mode
Metering Method Center-Weighted Average Metering
Exposure Modes Modes: Aperture Priority, Manual
Compensation: -3 EV to +3 EV (in 1/3 EV Steps)
White Balance Modes Auto
Buffer/Continuous Shooting Up to 3 fps at 24 MP for up to 8 Frames in Raw Format
Flash
Built-in Flash No
Max Sync Speed 1 / 180 Second
Flash Compensation -3 EV to +3 EV (in 1/3 EV steps)
Dedicated Flash System TTL
External Flash Connection Hot Shoe
Performance
Start-up Time 1 seconds
Self Timer 12 Seconds
Power
Battery 1 x BP-SCL2 Rechargeable Lithium-Ion Battery Pack, 7.4 VDC, 1800 mAh
Operating/Storage Temperature Operating
32 to 104°F (0 to 40°C)
Physical
Dimensions (W x H x D) 5.5 x 1.7 x 3.1" / 138.6 x 42.0 x 80.0 mm
Weight 1.496 lb / 680 g with battery
