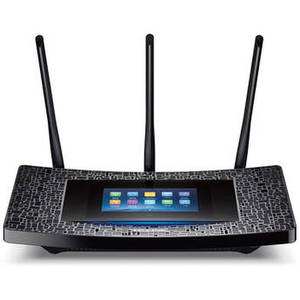

Touch P5 Dual-Band Wireless-AC1900 Touch Screen Gigabit Router
From TP-Link | Model #: TPTOUCHP5
See more in Electronics
From TP-Link | Model #: TPTOUCHP5
See more in Electronics

Product Description
With a 4.3" capacitive touchscreen display, the Touch P5 Dual-Band Wireless-AC1900 Touch Screen Gigabit Router from TP-Link makes it simple to set up and manage your network. The intuitive menu found on the display provides quick access to network selection, device management, parental control settings, network security settings, and much more. Accompanying the touchscreen setup capabilities is a dedicated smartphone app designed to give users complete access to parental controls, access policies, and more while on the go.
Once configured, this dual-band Gigabit router operates on both the 2.4 GHz and 5 GHz frequencies supporting a maximum Wi-Fi data throughput of 1.9 Gbps. With support for 802.11a/b/g/n/ac networking standards nearly any Wi-Fi enabled device can connect to the network from an area of up to 10,000 square feet. Built-in beamforming technology helps to strengthen wireless connections by beaming the Wi-Fi signal directly to connected devices for a more concentrated connection. Along with enhanced wireless connectivity, users can take advantage of four Gigabit Ethernet ports for a reliable wired network connection as well as one USB 3.0 and one USB 2.0 port to connect USB compatible peripherals to the network.
Once configured, this dual-band Gigabit router operates on both the 2.4 GHz and 5 GHz frequencies supporting a maximum Wi-Fi data throughput of 1.9 Gbps. With support for 802.11a/b/g/n/ac networking standards nearly any Wi-Fi enabled device can connect to the network from an area of up to 10,000 square feet. Built-in beamforming technology helps to strengthen wireless connections by beaming the Wi-Fi signal directly to connected devices for a more concentrated connection. Along with enhanced wireless connectivity, users can take advantage of four Gigabit Ethernet ports for a reliable wired network connection as well as one USB 3.0 and one USB 2.0 port to connect USB compatible peripherals to the network.
Hardware | |
Interfaces | 4 x 10/100/1000 Mbps LAN ports 1 x 10/100/1000 Mbps WAN port 1 x USB 3.0 port + 1 USB 2.0 port |
Buttons | Power on/off button Reset button |
Antennas | 3 x dual band detachable antennas |
External Power Supply | 12 V / 3.3 A |
Touch Screen | Screen Type: Capacitive Screen Size: 4.3" / 10.9 cmScreen Resolution: 128 ppi |
Wireless | |
Wireless Standards | IEEE 802.11ac/n/a 5 GHz IEEE 802.11b/g/n 2.4 GHz + 256QAM |
Frequency | 2.4 GHz & 5 GHz |
Signal Rate | 1300 Mbps at 5 GHz 600 Mbps at 2.4 GHz |
Reception Sensitivity | 5 GHz: 11a 6 Mbps: -94 dBm 11a 54 Mbps: -75 dBm 11ac HT20: -66 dBm 11ac HT40: -62 dBm 11ac HT80: -59 dBm 2.4 GHz: 11g 54 Mbps: -76 dBm 11n HT20: -73 dBm 11n HT40: -71 dBm |
Wireless Functions | Enable/Disable Wireless Radio, WMM, Wireless Statistics |
Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions |
Transmission Power | CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm |
Guest Network | 1 x 2.4 GHz guest network 1 x 5 GHz guest network |
Software | |
Quality of Service (QoS) | WMM, Bandwidth Control |
WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)/Bigpond |
Management | Access control Local management Remote management |
DHCP | Server, Client, DHCP Client List, Address Reservation |
Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
Dynamic DNS | DynDns, NO-IP |
VPN Pass-Through | PPTP, L2TP, IPSec |
Protocols | Supports IPv4 and IPv6 |
USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Print Server |
Other Specifications | |
System Requirements | • Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1,10, Mac OS, NetWare, UNIX or Linux • Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser • Cable or DSL Modem • Subscription with an Internet Service Provider (for Internet access) Windows 8, MAC OS, NetWare, UNIX or Linux |
Certifications | CE, FCC, RoHS |
Temperature & Humidity | Operating Temperature: 32 to 104°F / 0 to 40°C Storage Temperature: -40 to 158°F / -40 to 70°C Operating Humidity: 10 to 90% non-condensing Storage Humidity: 5 to 90% non-condensing |
Dimensions & Weight | |
Dimensions | 11.2 x 6.2 x 2.1" / 284 x 157 x 52 mm |
Weight | Not specified by manufacturer |
