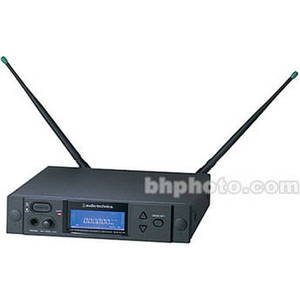

AEW-R4100 UHF Diversity Receiver for 4000 Series System (Band D - 655.500 MHz to 680.375 MHz)
From Audio-Technica | Model #: AUAEWR4100D
See more in Electronics
From Audio-Technica | Model #: AUAEWR4100D
See more in Electronics

Product Description
From Audio Technica, the AEW-R4100 receiver is designed for use with the 4000 series wireless microphone system. The receiver features frequency adjustable UHF reception, allowing access of up to 200 user selectable channels. Diversity reception allows 2 built-in, independent receivers to relay on a single frequency for the strongest possible reception.
The rear panel reveals both unbalanced 1/4" Phone and balanced XLR outputs. A comprehensive back-lit LCD display reveals channel and frequency settings, signal status and transmitter battery status. The 4000 series enhanced features include IntelliScan which automatically sets best available frequencies on all linked receivers, and Dual Compandor circuitry which processes high and low frequency signal separately resulting in superior audio quality.
Type of Receiver | Dual independent receivers, automatic-switching diversity |
RF Carrier Frequency Range | Band D - 655.500 MHz to 680.375 MHz |
Approx. Working Range | 300 feet |
Overall Frequency Response | 70 Hz to 15 kHz |
Signal-to-Noise Ratio | 115 dB at 40 kHz deviation (IEC-weighted), maximum modulation 75 kHz |
# Of Channels | 200 Channels |
Type of Output(s) | Unbalanced: 1/4" TS ("mono") phone jack Balanced: XLRM-type |
Headphone Monitoring | 1/4" TRS Phone |
Power Requirements | 100-240V AC 50/60 Hz; 8W |
Battery Type/Approx. Life | AC Powered Only |
Display | Back-Lit LCD Display & Battery / Signal Status LED |
Mounting Options | Table Surface / Rack Mountable rack ears included |
Antenna Type | BNC Flexible UHF |
Dimensions | 8.31 x 1.74 x 9.26" (211.0 x 44.0 x 235.0mm) (WxHxD) |
Weight | 2.4 lbs (1.1 kg) |
Mounting Options | Table Surface / Rack Mountable rack ears included |
Antenna Type | BNC Flexible UHF |
Dimensions | 8.31 x 1.74 x 9.26" (211.0 x 44.0 x 235.0mm) (WxHxD) |
Weight | 2.4 lbs (1.1 kg) |
Transmitter | AEW-T3300 Handheld Transmitter |
Type of Transmitter | Frequency Agile Handheld |
Type of Input Connector | Not applicable |
Type of Microphone | Condenser |
Polar Pattern | Cardioid |
Interchangeable Mic Heads | No |
Battery Type/Approx. Life | (2) 1.5v AA Alkaline not included |
Mute Switch | Power / Mute switch dual function |
Level Control | No |
Antenna Type | Internal |
Display | Back-Lit LCD Display & Battery / Signal Status LED |
Dimensions | 9.41 x 1.97" (239 x 50mm)(Length x Diameter) |
Weight | 9.5 oz (270 grams) without batteries |
