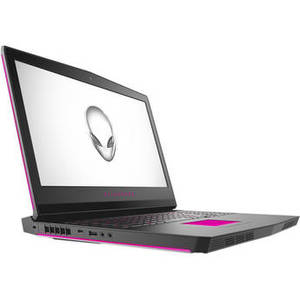

17.3" Alienware 17 R4 Notebook
From Dell | Model #: DEAW17R47003

See more in Electronics




17.3" Alienware 17 R4 Notebook
Product Description

Crafted for immersive, high-definition gaming, the 17.3" Alienware 17 R4 Notebook from Dell is a VR-ready system that has passed Oculus Ready and Vive Optimized certifications. It is equipped with a 1920 x 1080 Full HD IPS anti-glare display and a NVIDIA GeForce GTX 1060 graphics card with 6GB of GDDR5 VRAM. With a dedicated graphics card, you'll be able to crank up in-game visual settings and enable additional graphical eye-candy options to enjoy your games at their best. Balancing out the rest of the system is a 2.8 GHz Intel Core i7-7700HQ Quad-Core processor and 8GB of 2400 MHz DDR4 RAM that'll allow you to efficiently multitask and quickly access frequently used files and programs.

For storage, the Alienware 17 R4 has a 256GB PCIe SSD, which serves as the boot drive, and a 1TB 7200 rpm SATA hard drive, which is used for general storage, for an overall capacity of 1.256TB. Should you need more room, you can connect external storage solutions with two 5 Gb/s USB 3.0 Type-A ports, one of which features PowerShare technology, one 5 Gb/s USB 3.0 Type-C port, and one 40 Gb/s Thunderbolt 3 port. Furthermore, using its HDMI 2.0, mini-DisplayPort 1.2, and Thunderbolt 3 ports, you can connect external displays for extensive multitasking. Other integrated features include a Full HD webcam with Tobii IR Eye-tracking presence detection, Gigabit Ethernet, 802.11ac Wi-Fi, Bluetooth 4.1, a headphone jack (retaskable for mic/line-in analog audio), an audio out jack (compatible with inline mic headsets), and RGB lighting. The installed operating system is Windows 10 Home (64-bit).
Performance
Processor Intel Core i7-7700HQ Quad-Core
Base Clock Speed 2.8 GHz
Max Boost Speed 3.8 GHz
Total Installed Memory 8 GB
Maximum Memory Capacity 32 GB
Memory Type DDR4 SDRAM
Memory Speed 2400 MHz
User-Replaceable Memory 1 x 8 GB
Available Memory Slots 1
Memory Slot Type 260-Pin SO-DIMM
Graphics Type Dedicated
Graphics Card NVIDIA GeForce GTX 1060 with 6 GB GDDR5 VRAM
Intel HD Graphics 630
Display
Panel Type IPS
Size 17.3"
Aspect Ratio 16:9
Native Resolution 1920 x 1080
Touchscreen None
Finish Matte
Brightness 300 cd/m2
Viewing Angle 178° Horizontal, 178° Vertical
Drives
Available Slots Not Specified by Manufacturer
Total Capacity 1.256 TB
Solid State Storage 1 x 256 GB M.2 PCIe
Hard Disk Storage 1 x 1 TB 2.5" SATA (7200 rpm)
Optical Drive None
Input/Output Connectors
Ports 1 x Thunderbolt 3
2 x USB 3.0 Type-A
1 x USB 3.0 Type-C
1 x Docking Connector
Display 1 x HDMI 2.0
1 x Mini DisplayPort 1.2
Audio 2 x Integrated Speaker
1 x Integrated Subwoofer
1 x 1/8" (3.5 mm) Line-Out
1 x 1/8" (3.5 mm) Headphone Output
Integrated Microphone
Expansion Slots Not Specified by Manufacturer
Media Card Slots None
Communications
Network 1 x 10/100/1000 Mbps Gigabit Ethernet (RJ-45)
Modem None
Wi-Fi 802.11ac; Dual-Band
Bluetooth Bluetooth 4.1
Mobile Broadband None
GPS None
NFC None
Webcam User-Facing: 2.07 MP Photo / 1080p Video
Battery
Chemistry Lithium-Ion
Watt Hours / Type 68 Wh
Cells 4
Output Voltage 15.2 VDC
Maximum Runtime Not Specified by Manufacturer
Power Requirements 100-240 VAC, 50-60 Hz
Power Supply 1 x 180 W
General
Operating System Windows 10 Home (64-Bit)
Security Accepts 3rd Party Security Lock Devices
Keyboard Type: Standard Notebook Keyboard
Features: Backlight, Numeric Keypad
Pointing Device TouchPad
Dimensions (W x H x D) 16.7 x 1.2 x 13.1" / 42.4 x 3.0 x 33.3 cm
Weight 9.74 lb / 4.42 kg (Average weight)
Warranty Length Limited 1-Year Warranty
