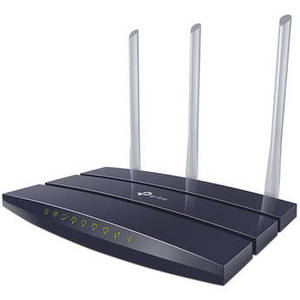

TL-WR1043N Wireless-N450 Dual-Band Gigabit Router
From TP-Link | Model #: TPTLWR1043N
See more in Electronics
From TP-Link | Model #: TPTLWR1043N
See more in Electronics
Product Description
With wireless data transfer rates of up to 450 Mbps, the TL-WR1043N Wireless-N450 Dual-Band Gigabit Router from TP-Link can handle web browsing, streaming multimedia content, and more. The enhanced wireless signal is provided by the three 5 dBi antennas offering MIMO (multiple input - multiple output) technology with three separate connections to avoid network congestion. In addition to wireless connectivity, this router comes equipped with four Gigabit Ethernet ports to connect Ethernet-enabled devices to the network. Once plugged in, the TL-WR1043N can be managed right from your smartphone or tablet using the TP-Link Tether app.
| Hardware | |
| Interface | 4 x 10/100/1000 Mbps LAN ports 1 x 10/100/1000 Mbps WAN port |
| Button | WPS/Reset button Power button Wi-Fi button |
| Antenna | 3 x 5 dBi omni directional antennas |
| External Power Supply | 9 V / 0.85 A |
| Wireless Standards | 802.11b/g/n |
| Wireless Specifications | |
| Frequency | 2.4 - 2.4835 GHz |
| Signal Rate | 11n: Up to 450 Mbps (dynamic) 11g: Up to 54 Mbps (dynamic) 11b: Up to 11 Mbps (dynamic) |
| Reception Sensitivity | 270 M: -68 dBm @ 10% PER 130 M: -68 dBm @ 10% PER 108 M: -68 dBm @1 0% PER 54 M: -68 dBm @ 10% PER 11 M: -85 dBm @ 8% PER 6 M: -88 dBm @ 10% PER 1 M: -90 dBm @ 8% PER |
| Transmit Power | CE: <20 dBm (2.4 GHz) FCC: <30 dBm |
| Wireless Functions | Enable / disable wireless radio, WDS bridge, WMM, wireless statistics |
| Wireless Security | 64/128/152-bit WEP / WPA / WPA2, WPA-PSK / WPA2-PSK |
| Software | |
| Quality of Service (QoS) | WMM, Bandwidth Control |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP (Dual Access)/L2TP (Dual Access)/BigPond |
| Management | Access control Local management Remote management |
| DHCP | Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, Comexe, NO-IP |
| VPN Pass-Through | PPTP, L2TP, IPSec (ESP Head) |
| Access Control | Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security | DoS, SPI Firewall IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding |
| Protocols | Support IPv4 and IPv6 |
| Guest Network | 1 x 2.4 GHz guest network |
| Other Specifications | |
| Certifications | CE, FCC, RoHS |
| System Requirements | Microsoft Windows 10/8.18/7/Vista/XP/2000 Mac OS NetWare UNIX Linux |
| Temperature & Humidity | Operating Temperature: 32 to 104°F / 0 to 40°C Storage Temperature: -40 to 158°F / -40 to 70°C Operating Humidity: 10 to 90% non-condensing Storage Humidity: 5 to 90% non-condensing |
| Dimensions & Weight | |
| Dimensions | 8.9 x 5.8 x 1.3" / 225 x 148 x 33 mm |
| Weight | Not specified by manufacturer |
