Product Description

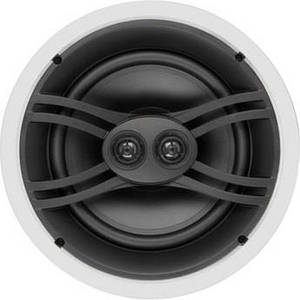

The NS-IW480CWH is a versatile, easy-to-install in-ceiling speaker that reproduces natural sound like only Yamaha can. The woofer is set in a tilted mounting allowing the user to aim the sound. Swiveling "Sound Max" tweeters create sizzling highs up to 28kHz. For maximum flexibility, the aluminum grill is paintable and comes with a protective cover.
| System | |
| Speaker Design | 3-Way in-ceiling |
| Power Rating | 120W/35W (max/nominal) |
| Impedance | 8 Ohms |
| Frequency Response | 50Hz - 28kHz |
| Sensitivity | 86dB/2.83V/1m |
| Crossover | 6kHz & 9kHz |
| Enclosure | Paintable, aluminum grill |
| Shielded | No |
| Drivers | |
| Tweeter | 2 x 0.75" (19mm) dome tweeter |
| Midrange | None |
| Woofer | 8" (203mm) Polypropylene mica filled cone woofer |
| General | |
| Connector Type | 2 x Binding Posts |
| Configuration | 3-Way |
| Construction | Aluminum Grill |
| Dimensions | 10.3" (262mm) wide4.7" deep |
| Cut-Out Size | 9.4" (240mm) wide |
| Mounting Depth | 4.4" (112mm) deep |
| Weight | 4.6 lbs (2.1 kg) / unit |
| Color | White |
