Product Description

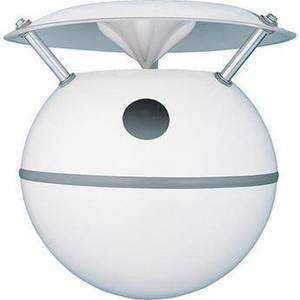

The white Soundsphere Q-12A 12" Loudspeaker is an omnidirectional speaker that provides a more powerful sound system where clear voice announcements and high-fidelity foreground music at high sound pressure levels are required. Along with its hemispherical coverage pattern, the Q-12A loudspeaker provides high sensitivity (97 dB 1W/1m), and utilizes Soundsphere's Poly-Exponential Incidence Reflector. This loudspeaker can be mounted using the Soundsphere hanging kit or mounting bracket (sold separately). With an increased sound pressure level (SPL) of 121 dB, the Q-12A is an ideal solution for large venues such as open public areas, gymnasiums, auditoriums, arenas, ice rinks, transportation terminals, factories, and nightclubs. In addition, the Q-12A features a true coaxial 12" driver providing a 180° vertical and 360° horizontal area of coverage, maximizing speech intelligibility and music clarity. The Q-12A is housed in a fiberglass enclosure and offers 60 Hz - 16 kHz frequency response with 97 dB sensitivity, and 250W of power.
Sensitivity | 97 dB SPL (1 W / 1 m) |
Maximum SPL | 121 dB (250 W / 1 m) |
Power Handling | 250 W RMS |
Frequency Response | 60 Hz to 16 kHz ±6 dB |
Coverage | 180° Vertical 360° Horizontal |
Impedance | 8 ohms |
Low Frequency Driver | 12" (305 mm) true coaxial, treated pulp fiber |
High Frequency Driver | 2.8" (71 mm) titanium compression driver |
Enclosure Material | Fiberglass with gelcoat finish |
Regulations | CE, RoHS |
Dimensions | Height: 25" (635 mm) Sphere Diameter: 22" (559 mm) Reflector Diameter: 26" (660 mm) |
Weight | 39 lb (17.6 kg) |
